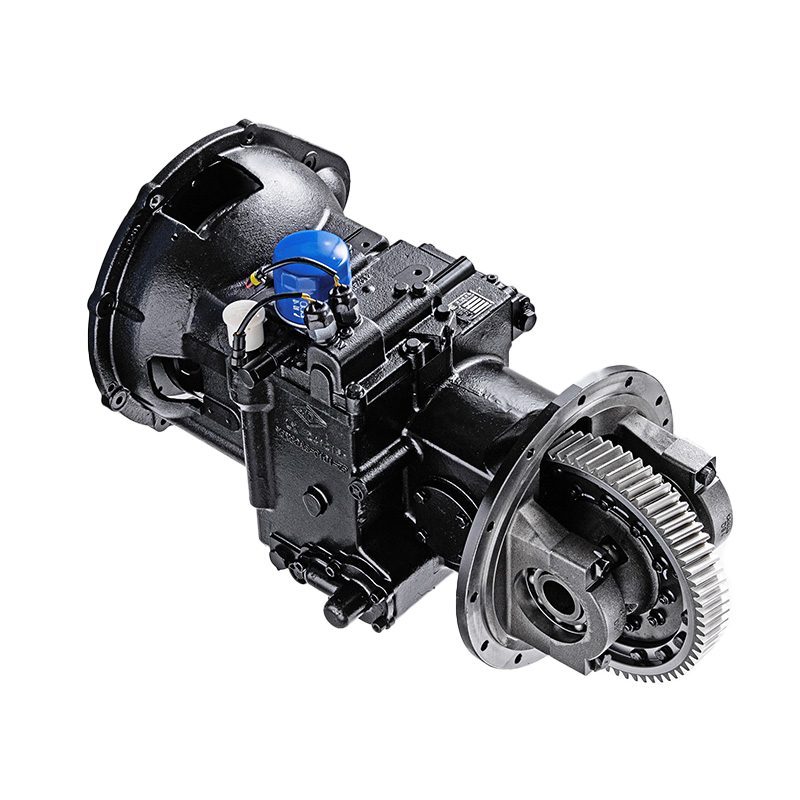

YQXD18/25/30/38 Series

Match Engine:

Domestic 485/490/498 diesel engine, Dachai, Domestic gasoline engine, Nissan, ISUZU, Mitsubishi, Kubota, Yammar , General .



Main Characteristics

T/C self-adaption for severe road condition and sudden change load application.

Alloy cast iron housing processed by lost film or coated sand has a beautiful appearance and also solves the problem of raw material defect.

 Shock resistance, low vibration and stable operation ease driver’s fatigue

Contact Us

Main technical parameters of hydraulic transmission YQX18, 25, 30, 38/YQXD18, 25, 30, 38 (1.5~4T) series

Transmission Model

YQX18/YQXD18

YQX25/YQXD25

YQX30/YQXD30

YQX38/YQXD38

Match Engine Power

Kw

25~31

33~40

42~48

Match Engine Speed

r/min

2300~2600

2250~2650

2400~2650

Match Engine max Output Moment

Nm

85~131

140~179

174~206

Transmission Ratio

Forward

19.2065

15.3652

17.4972

Reverse

19.2065

15.3652

17.4972

Main Oil Pressure

MPa

1.1~1.4

T/C inlet Pressure

MPa

0.5~0.7

Hydraulic T/C

Model

YJH265

Effective Diameter

mm

265

Zero Speed Torque Coefficient

3±0.15

Max Efficiency

>0.79

Zero Speed Pump Impeller Nominal Moment

N.m



33.5±1.7

Max Efficiency Pump Impeller Nominal Moment

N.m

31±1.6

The Working Oil

Transmission

No. 6 (Winter), No. 8 (Summer) Hydraulic Transmission Oil



Reducer

GL-5  80W-90 Vehicle Gear Oil

Outline Size

Length x Width x Height

760×470×450

851×470×450

Net Weight

Kg

160

180

185

Zhejiang Jindao Technology
  • 0+

    Years of experience in the industry

  • 0+

    Countries and territories covered by our services

  • 0+

    Core patent technology reserve

Since its establishment in 2003, Zhejiang Jindao Technology Co., Ltd. has been dedicated to the industrial vehicle transmission industry, specializing in the R&D, manufacturing, and sales of transmissions for forklifts and other industrial vehicles. The company provides comprehensive transmission system solutions for industrial vehicles. With advanced technology, reliable product quality, and excellent after-sales service, Jindao has earned the trust of both domestic and international forklift OEMs. It has established long-term, stable partnerships with major Chinese forklift manufacturers such as Heli and Hangcha Group. In recent years, the company has actively expanded into global markets, successfully entering the supply chains of leading international forklift manufacturers including Toyota, Mitsubishi Logisnext, KION Group, Jungheinrich, Doosan, Clark, and Hyster. Jindao is among the few Chinese companies to be recognized as a supplier by the world’s top ten forklift OEMs.

Building on years of deep expertise in industrial vehicle transmission systems, the company has mastered the core technologies of forklift transmissions, wet drive axles, and related products, holding more than 100 proprietary R&D achievements. In 2024, Jindao sold approximately 200,000 units of electric, hydrodynamic, and mechanical products, achieving a domestic market share of about 15%. Hydrodynamic products accounted for around 50% of revenue, electric products for about 30%, while international customers contributed approximately 20% of total revenue.

The company was an early mover in the field of new energy forklift transmissions and has obtained multiple invention patents for electric transmissions. With the industry’s accelerating electrification trend, Jindao’s products have demonstrated outstanding advantages in vibration and noise reduction, transmission efficiency, and service life, driving rapid growth of this business segment in recent years. For major customers’ new energy and high-end hydrodynamic products, more than 90% of R&D projects have been undertaken and completed by Jindao.

Adhering to the philosophy of innovation-driven growth, Jindao continues to strengthen its investment in cutting-edge technologies, product innovation, and upgrades. The company has already mastered core technologies for advanced integrated products such as high-voltage lithium battery transmissions, intelligent floating transmissions, dual-in-one, and triple-in-one systems, and is actively promoting their industrialization. Meanwhile, Jindao is also expanding into medium- and high-power transmissions and axle-housing products for construction machinery, with the potential to replace imports in these fields in the future.
